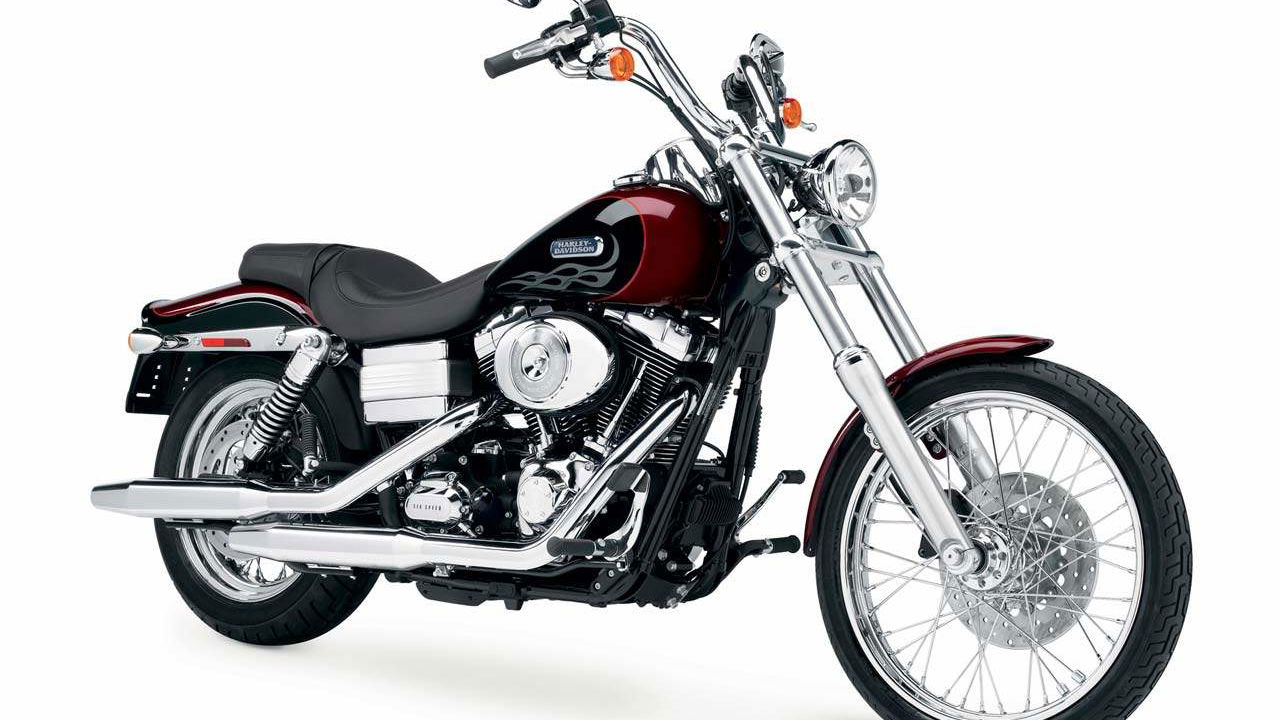

Dyna Wide Glide (FXDWGI) review
New chassis + new six-speed transmission + extended fork rake = the longest Wide Glide to roll out of Milwaukee
Not tested
The Wide Glide takes the laid-back chopper profile to its street-legal limit. Longer than ever, it now has new chunky 49mm forks raked out to 36 degrees and a massive 21" laced front wheel. The bobtail rear fender has been neatly sculpted around the larger 160-section rear hoop, while the rider can slide into a new stepped chopper-style seat. All of the wiring from the switchgear is fed through the new ape-hanger bars for a cleaner look.
Not tested
The Wide Glide takes the laid-back chopper profile to its street-legal limit. Longer than ever, it now has new chunky 49mm forks raked out to 36 degrees and a massive 21" laced front wheel. The bobtail rear fender has been neatly sculpted around the larger 160-section rear hoop, while the rider can slide into a new stepped chopper-style seat. All of the wiring from the switchgear is fed through the new ape-hanger bars for a cleaner look.
| Length (mm) | 2475 |
| Dryweight (kg) | 295 |
| Seats | 2 |
| Seat Height (mm) | 699 |
| Suspension Front | 49mm forks |
| Suspension Rear | Twin coil over shocks |
| Adjustability Front | None |
| Wheels Front | 21" chrome laced |
| Wheels Rear | 17" chrome laced |
| Tyres | Dunlop |
| Tyres Front | MH90-21 54H |
| Tyres Rear | 160/70B17 73V |
| Brakes Front | Single 300mm disc, four piston caliper |
| Brakes Rear | Single 292mm disc, four piston caliper |
| Tank Capacity (litres) | 19.3 |
| Wheelbase (mm) | 1730 |
| Ground Clearance (mm) | 158 |
| Rake (degrees) | 34 |
| Trail (mm) | 130 |
| Chassis | Mild steel, tubular frame with rectangular section backbone |
| Colours | Vivid black, black pearl, black cherry pearl, yellow pearl, chopper blue pearl, brilliant silver pearl, deep cobalt pearl, brandy wine sunglo, glacier white pearl, two-tone rich sunglo blue and chopper blue pearl, two-tone black cherry pearl and black pearl, two-tone fine red pearl and vivid black |
| Cubic Capacity (cc) | 1449 |
| Valves | 8 |
| Torque (ft/lb) | 78 |
| Torque Peak (rpm) | 4000 |
| Bore (mm) | 95.3 |
| Stroke (mm) | 101.6 |
| Compression Ratio | 8.9:1 |
| Valves Per Cylinder | 4 |
| Exhaust Layout | Staggered exhaust with shorty dual mufflers |
| Cooling | Air cooled |
| Fuel Delivery | Electronic Sequential Port Fuel Injection (ESPFI) |
| Drive | Belt |
